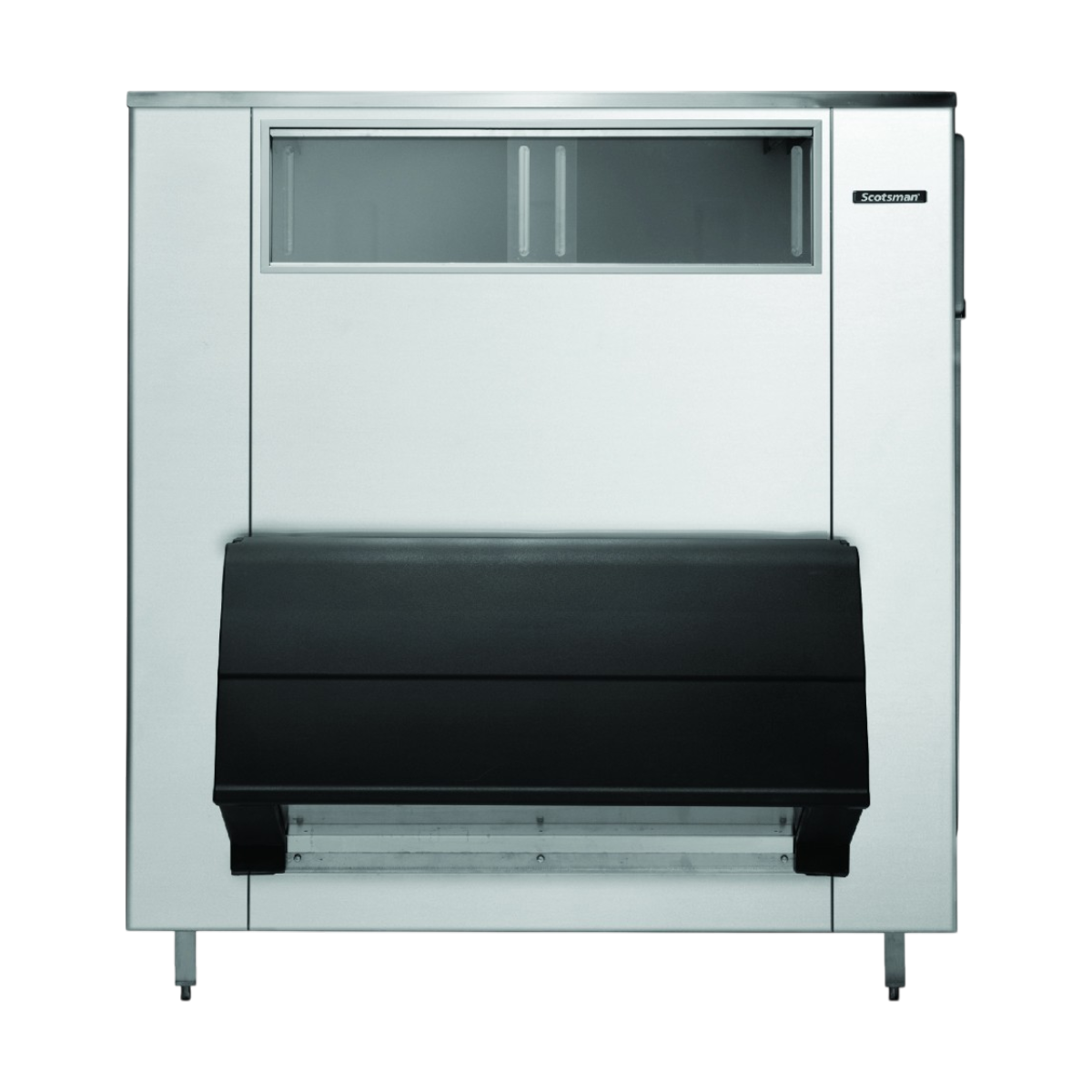

Scotsman UBH 1600 Upright Ice Storage Bin 812kg

Scotsman UBH 1600 Upright Ice Storage Bin 812kg

$11,797.99
$11,797.99
Sale Sold out
Shipping calculated at checkout.

Need multiple units, freight pricing or expert advice?

Request a Free Quote

The Scotsman UBH 1600 Upright Ice Storage Bin provides up to 812kg of ice storage, making it ideal for high-volume hospitality, foodservice and commercial operations requiring maximum ice capacity.

It features a pre-cut top panel for compatible modular ice maker heads, a front viewing window, a multi-position ice deflector and high-density insulation to help maintain ice quality while simplifying daily operation.

Key Features

  • 812kg Ice Storage Capacity – Provides high-capacity ice storage.
  • Upright Bin Design – Maximises storage while providing convenient front access to ice.
  • Pre-Cut Top Panel – Designed to accommodate compatible modular ice maker head units.
  • High-Density Polyethylene Insulation – Helps maintain ice quality and reduce melting.
  • Rounded Polyethylene Bin Liner – High-density, non-corroding liner with rounded corners for easier cleaning.
  • Stainless Steel Construction – Stainless steel frame, sides, top, back and bottom.
  • Multi-Position Ice Deflector – Helps prevent ice spills during dispensing.
  • Sliding Inspection Window – Allows visual ice level checks and assists with initial paddle operation.
  • Spring-Loaded Bin Door – Provides safer operation and helps maintain a tight seal for improved ice storage.

Specifications

  • Model: UBH 1600
  • Maximum Ice Storage Capacity: 812kg
  • AHRI Ice Capacity: 637kg
  • Internal Volume: 1.655m³
  • Dimensions (W × D × H): 1524 × 1125 × 1731mm
  • Net Weight: 206kg

Supplied Accessories

  • Ice paddle
  • Water hose
  • Drain hose

Compatible Machines

Scotsman C 2148

Resources

🚚 Delivery & Installation Services

  • Delivery Only (Kerbside Drop)

Your ice machine will be delivered in its original packaging via a tailgate truck and left at the kerbside or designated loading area. This service does not include unpacking, positioning or installation.

  • Delivery + Uncrating & Placement

Your ice machine will be delivered to your premises, unpacked, positioned in your preferred location and all packaging removed. Installation is not included.

  • Delivery + Installation

Our complete delivery and installation service includes delivery, uncrating, positioning, packaging removal and installation to adjacent existing power, water and waste services. Your machine will be tested and ready for use before our team leaves.

⚠️ Important Information

Metro Delivery Areas
  • Metro Standard (Kerbside Delivery): Available within 50 km of the CBD in Brisbane, Sydney, Melbourne, Perth and Adelaide.
  • Metro Premium (Delivery & Positioning): Available within 50 km of the CBD in Brisbane, Sydney, Melbourne, Perth and Adelaide.
Regional & Remote Deliveries (POA)

Delivery charges for regional and remote locations vary depending on distance and site access. You can place your order online as normal. We will calculate the freight cost after checkout and provide a separate freight quotation before dispatch.

Additional Charges

Delivery pricing assumes clear and safe site access. Additional charges may apply for:

  • Stairs
  • Restricted or difficult access
  • Lifting over obstacles or the use of specialised equipment

Please let us know of any access requirements when placing your order so we can provide an accurate quotation.
